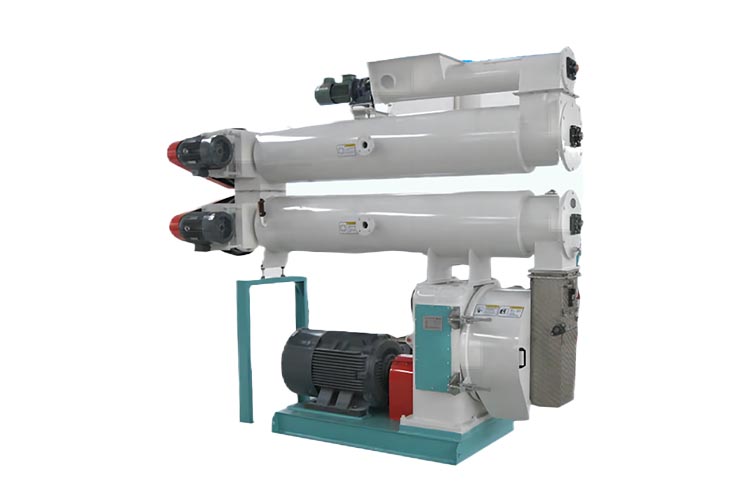

CPM Type Granulator
High-grade granulator is a low-fault model with the latest international technology. Main drive part bearings, oil seal, O-rings of the main standard parts are directly imported from abroad, and its shape, internal design and manufacturing quality are up to the international advanced level in the 1990s; The addition of a two-layer lengthening conditioner can fully gelatinize starch, improve particle adhesion and have better particle quality.
| Model | Main motor power(kw) | Production capacity(t/h) | Feed motor power(kw) | Conditioner power(kw) | Die diameter(mm) | Pellet size(mm) |
| SZLH25 | 15 | 0.5-1.5 | 0.55 | 2.2 | Φ250 | Φ2-18 |
| SZLH30 | 22/30 | 1-4 | 0.55 | 2.2 | Φ300 | Φ2-18 |
| KYW32 | 37 | 2-5 | 0.55 | 2.2 | Φ320 | Φ2-18 |
| SZLH35 | 55 | 2-8 | 0.75 | 2.2 | Φ350 | Φ2-18 |
| SZLH40 | 75/90 | 2-10 | 0.75 | 2.2 | Φ400 | Φ2-18 |
| SZLH400 | 75/90 | 3-12 | 1.5 | 5.5 | Φ400 | Φ2-12 |
| SZLH420 | 110 | 3-14 | 1.5 | 5.5 | Φ420 | Φ2-18 |
| SZLH420D | 110 | 3-16 | 1.5 | 5.5 | Φ420 | Φ2-18 |
| SZLH508 | 110/132/160 | 4-20 | 2.2 | 7.5 | Φ508 | Φ2-18 |
| SZLH768 | 250/280/315 | 12-40 | 3 | 11 | Φ768 | Φ2-18 |
