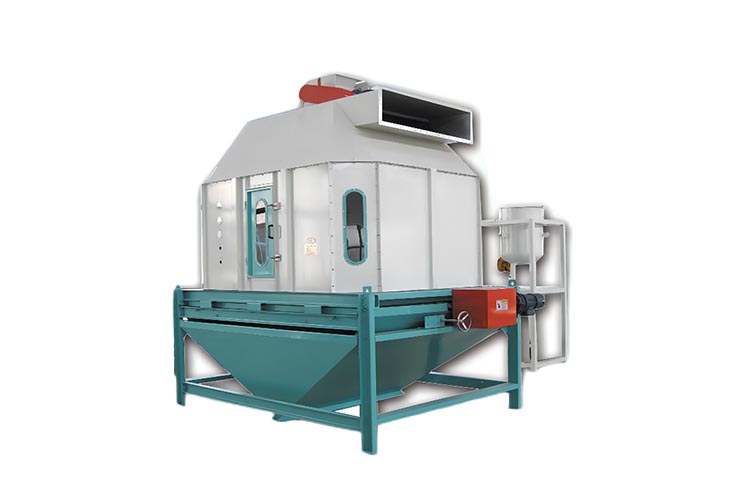

SKLB Series Reserve Flow Plate-turnover Cooler
Unique cooling principle. Relative movement happens between cold wind direction and material flow direction; The heat in the material is gradually distributed from inside to outside, so the excellent cooling effect is obtained.
Cover a small area. The process layout is convenient.
Fewer moving parts, simple structure, low noise, no fault.
Easy to adjust, high automation program, suitable for any particle cooling.
The unique pendulous plate-turnover material discharge device is adopted to make it run smoothly and reliably.
SKLB6 and above models are equipped with rotary bulk device.
The cooling temperature is not higher than room temperature by ±5°C, which is far better than the national standard.
Scope of application: mainly suitable for the cooling of various materials such as pellet material, expansion material, expansion material, etc., especially suitablefor cooling of expansion material and expansion material.
| Model | SKLB2.5 | SKLB4 | SKLB6 | SKLB8 | SKLB10 | SKLB12 |
| Capacity(t/h) | 5 | 10 | 15 | 20 | 25 | 30 |
| Cooling volume(m3) | 2.5 | 4 | 6 | 8 | 10 | 12 |
| Cooling time(min) | Not less than 6-10min | |||||
| Feed temperature after cooling | Not higher than room temperature by +3-5P | |||||
| Power(kw) | 1.5+0.55 | 1.5+0.55 | 1.5+0.S5 | 1.5+0.55+1.1 | 1.5+1.1+0.75 | 1.5+1.1+0.75 |
